BO01

by RENZO PIANO,KOLHBECKER in Malmo, Sweden

Masterplan Description Map Streetscapes Urbanscapes Resources

Details Views: 1306

Tags

Data Info

Author RENZO PIANO,KOLHBECKER

City Malmo

Country Sweden

Year 2001

Program Sustainable Mixed Use Neighbourhood

Technical Info

Site area 180000 sqm

Gfa 184500 sqm

Density 1 far

Population density 1400 inh/ha

Home Units: 650

Jobs 0

Streetsroad: 0 %

Buildup: 0 %

NonBuild-up: 1 %

Residential 1 %

Business 0 %

Commercial 0 %

Civic 0 %

Description

It is a sustainable mixed-use neighborhood that was first built to showcase sustainability in an international housing exhibition.
It is a brownfield development built on former docklands. The existing polluted topsoil was replaced with 4” thick fertile soil as remediation.

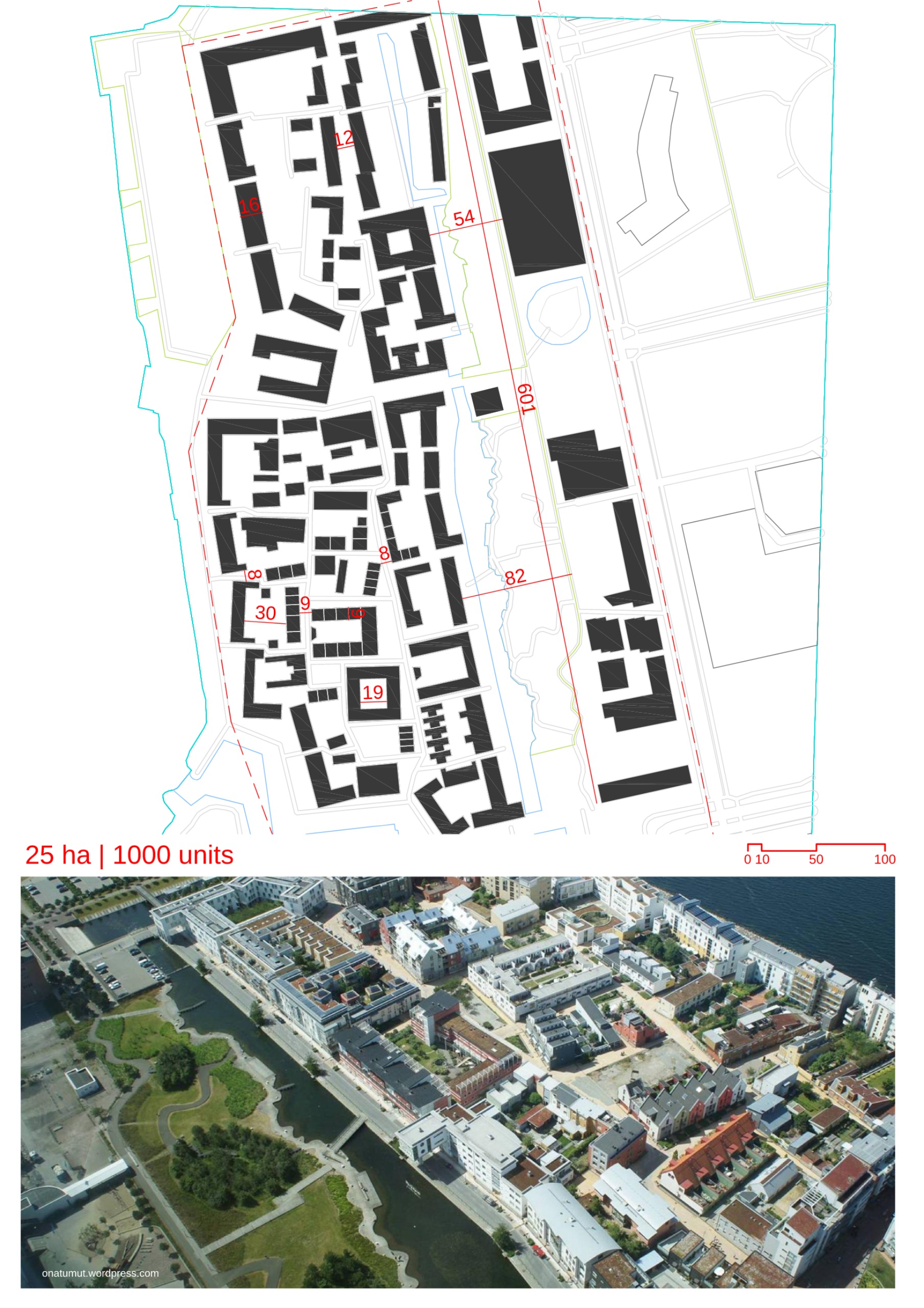

The Layout

The layout consists of an irregular grid interspersed with parks, plazas, and gardens.
The buildings at the perimeter of the site are higher and reduce in height as one moves inwards. The perimeter buildings act as wind barriers for the region.

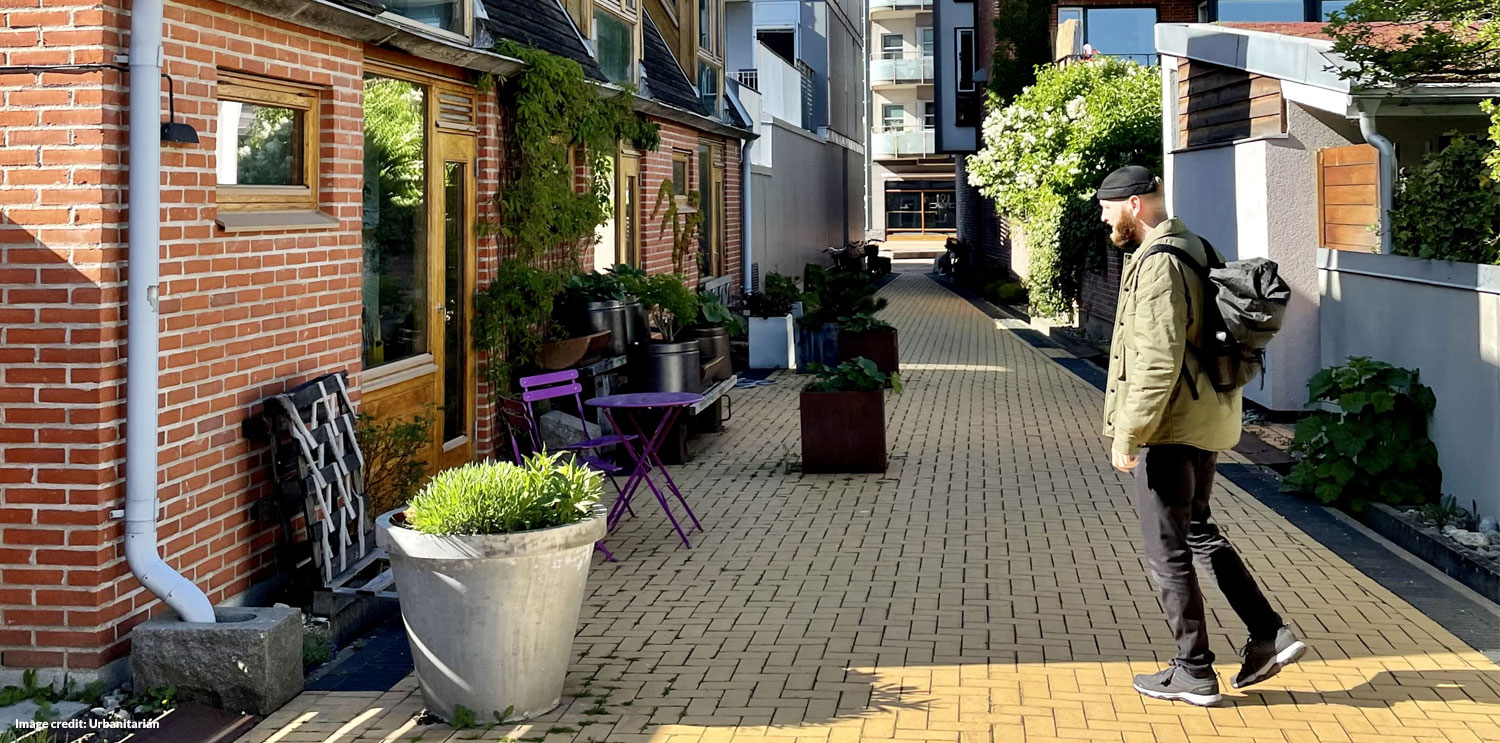

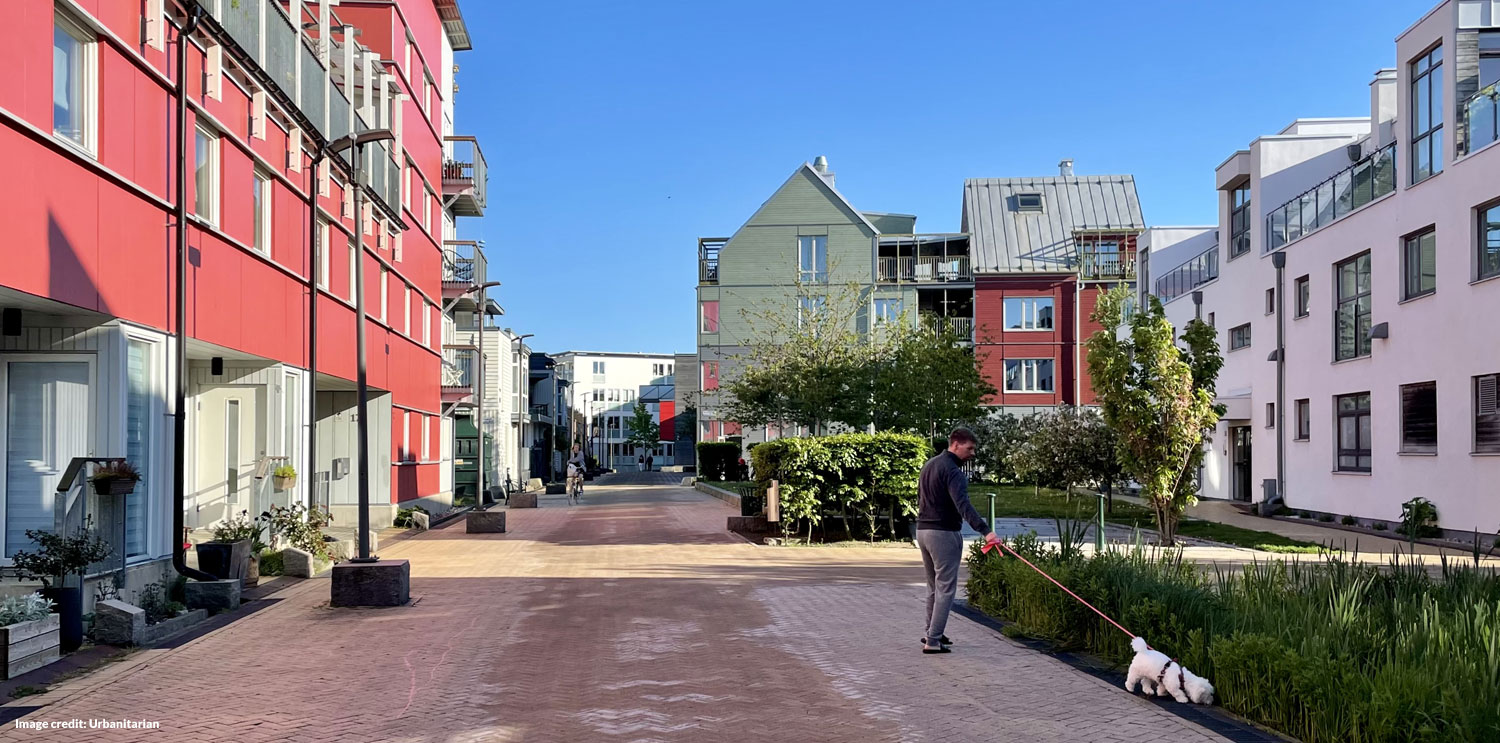

The buildings formed at the center acquire a human scale. Residences are placed amidst semi-public pedestrian streets.
The twisting Torso is a 54-story mixed-use tower that acts as a central landmark for the region.
Buildings are oriented south to take advantage of passive heating. They are of narrow depth to enable maximum daylighting.

Self-sufficiency

The main principle behind the district is that it sources 100% of its energy from renewable sources. -The masterplan has two linear water elements running North-South as its axes.
Electricity is generated from solar panels and wind turbines. Heat pump extracts heat from the water and underground reservoirs for space heating purposes.
Waste is segregated in the individual dwellings. It is treated in the area’s sewage plant. Some waste is converted to biogas which is used as fuel for public transport. The nutrients from the waste are extracted and used for agriculture.

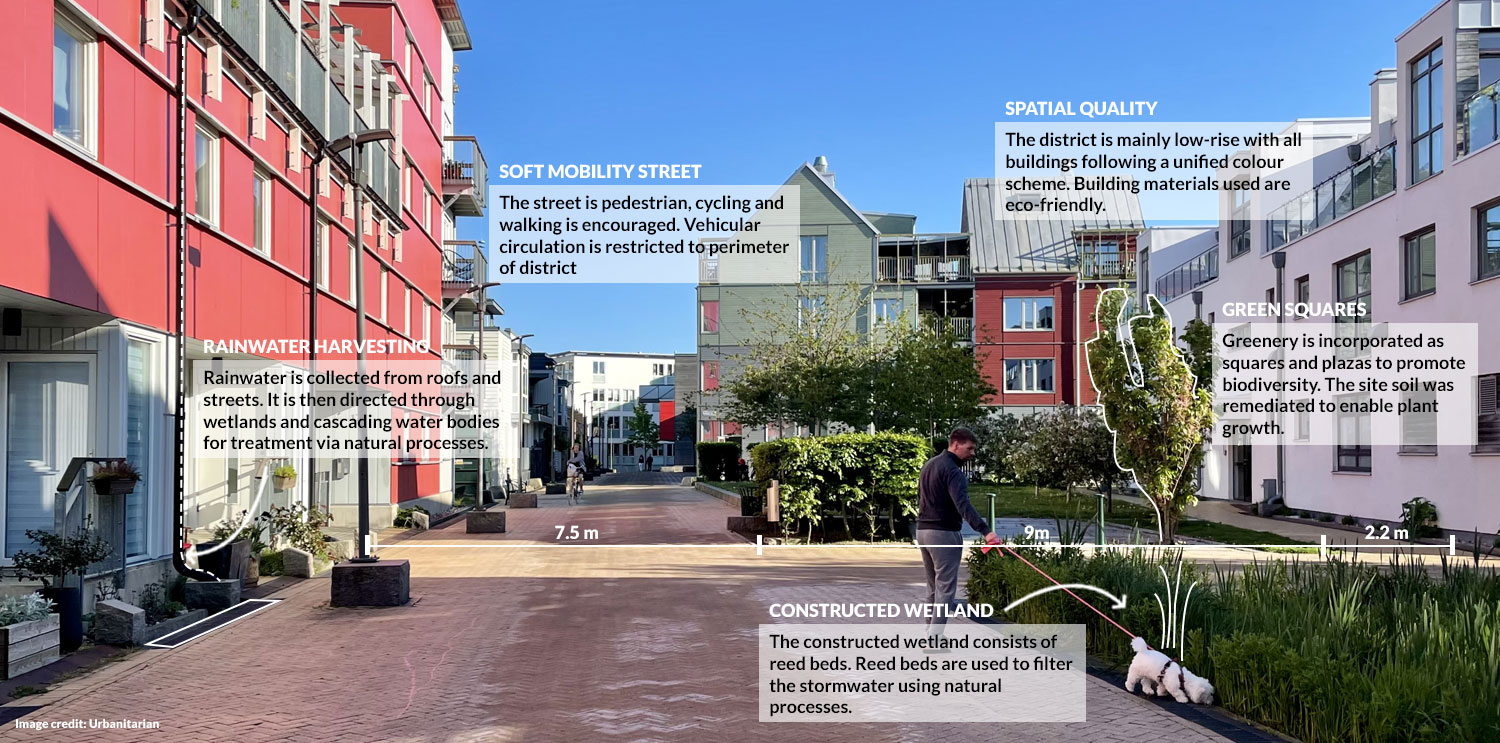

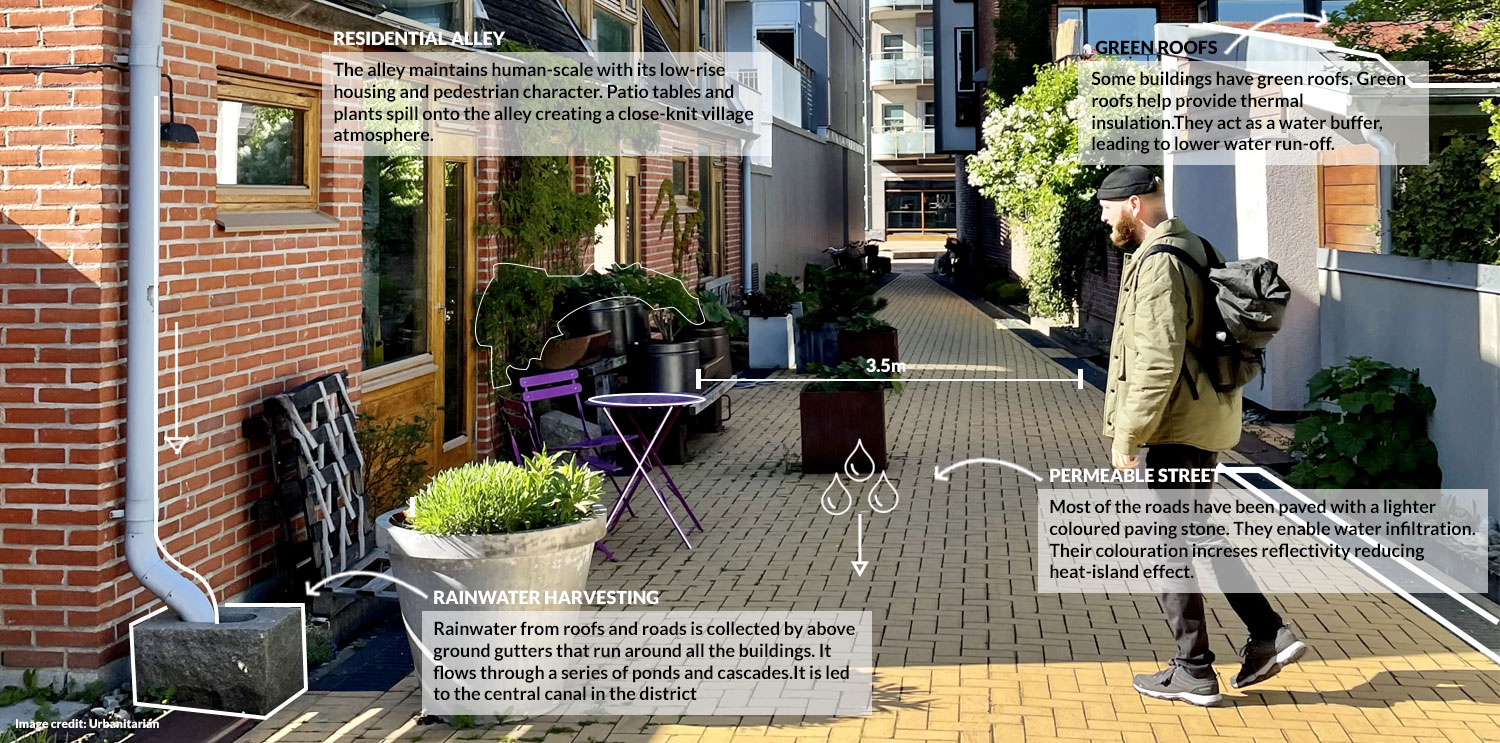

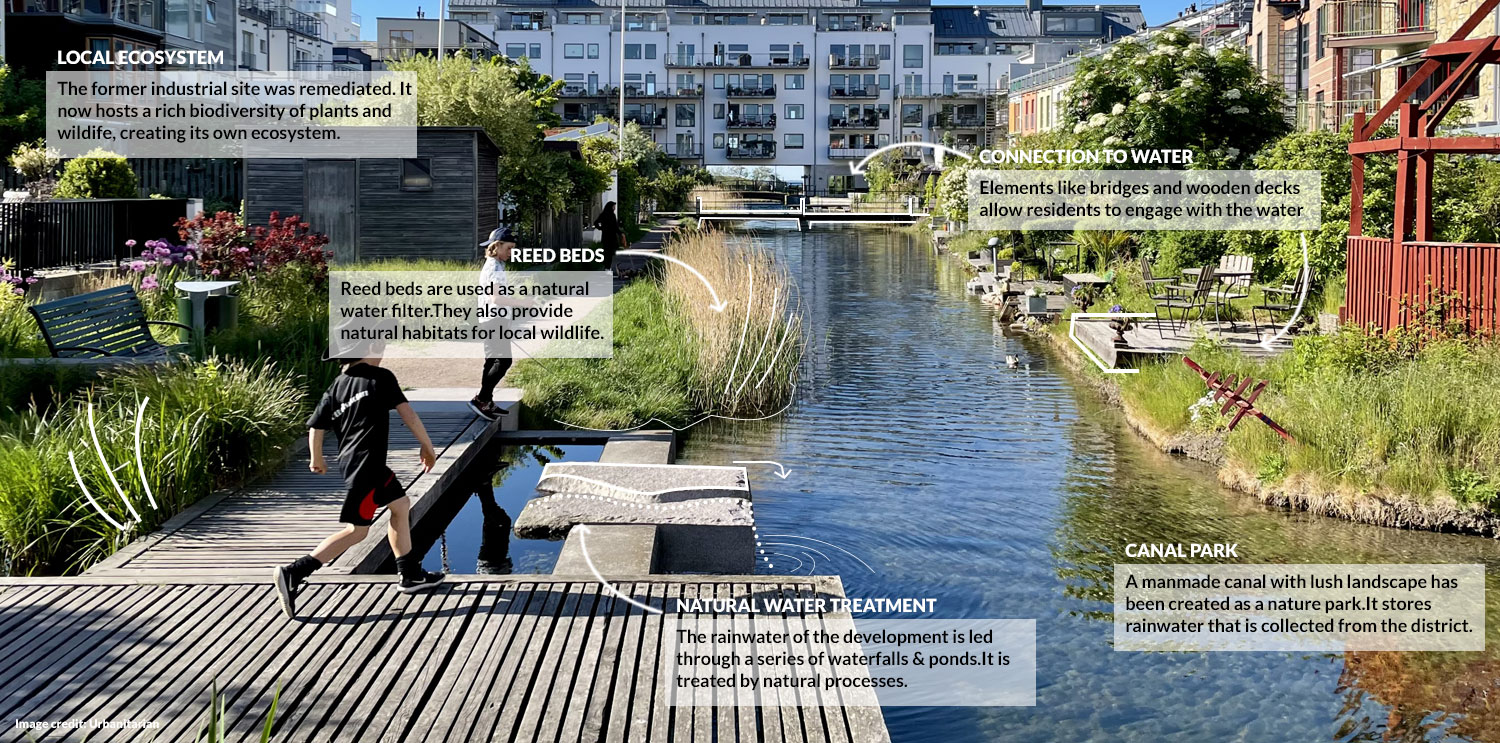

Stormwater management is through above-ground gutters. They are directed through a series of waterfalls and ponds which helps in purifying the water and is aesthetically pleasing as well.

Landscape and Biodiversity

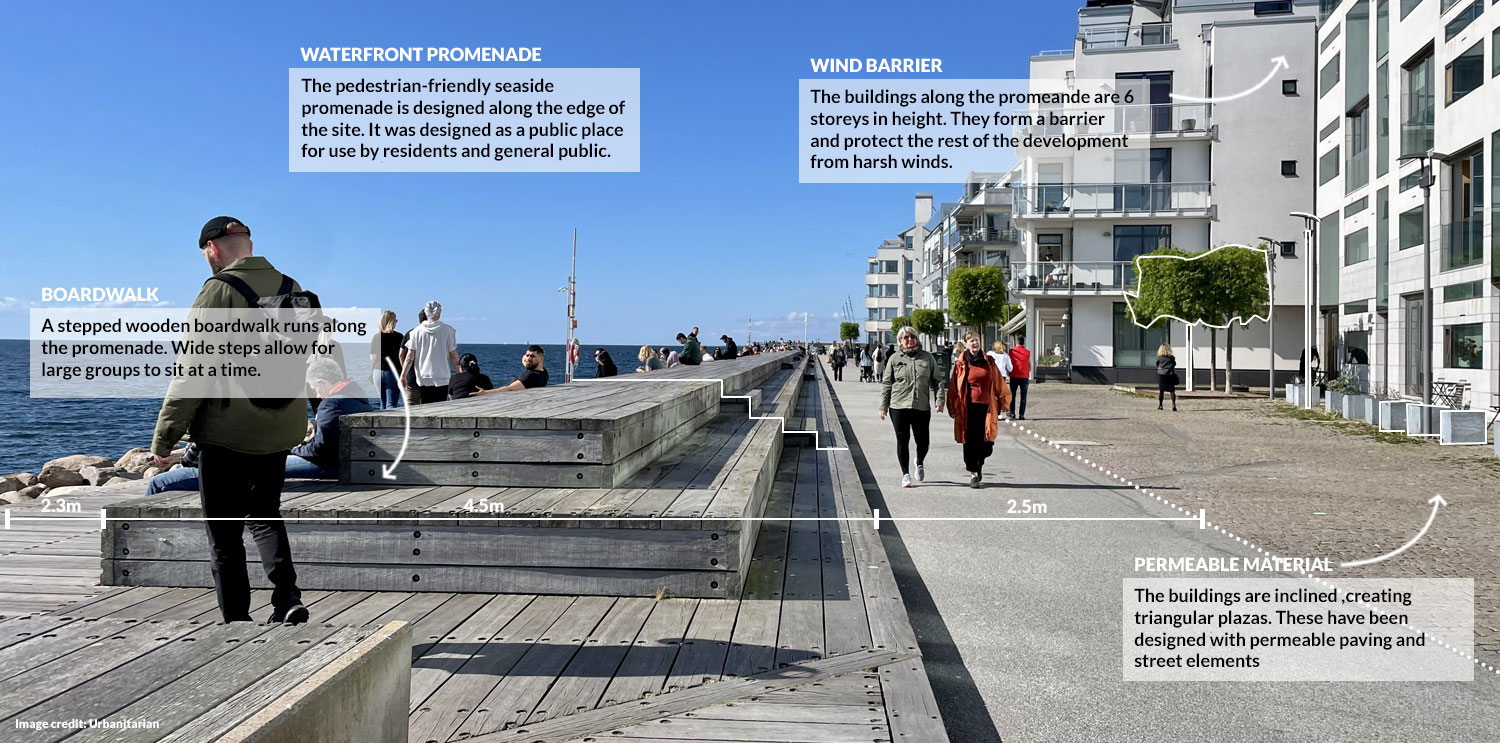

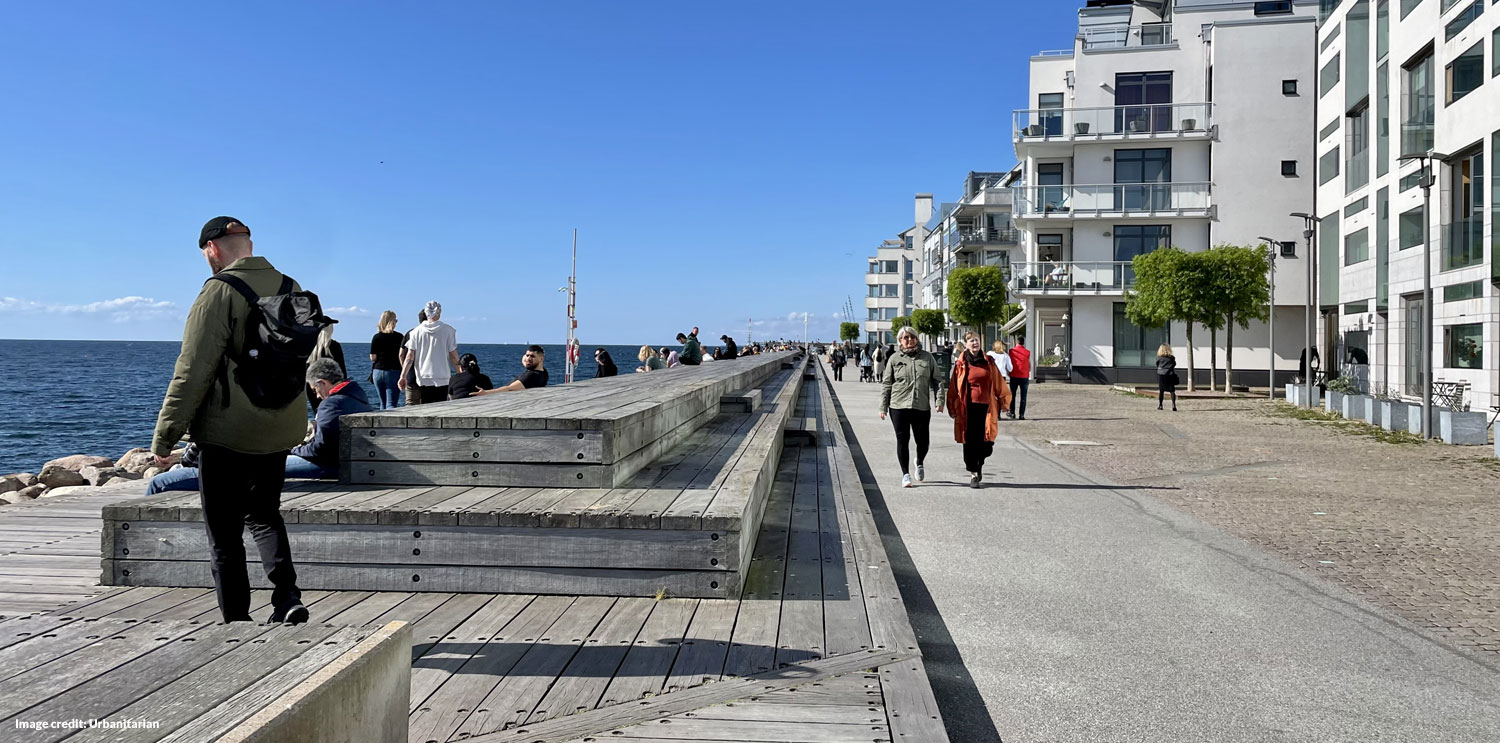

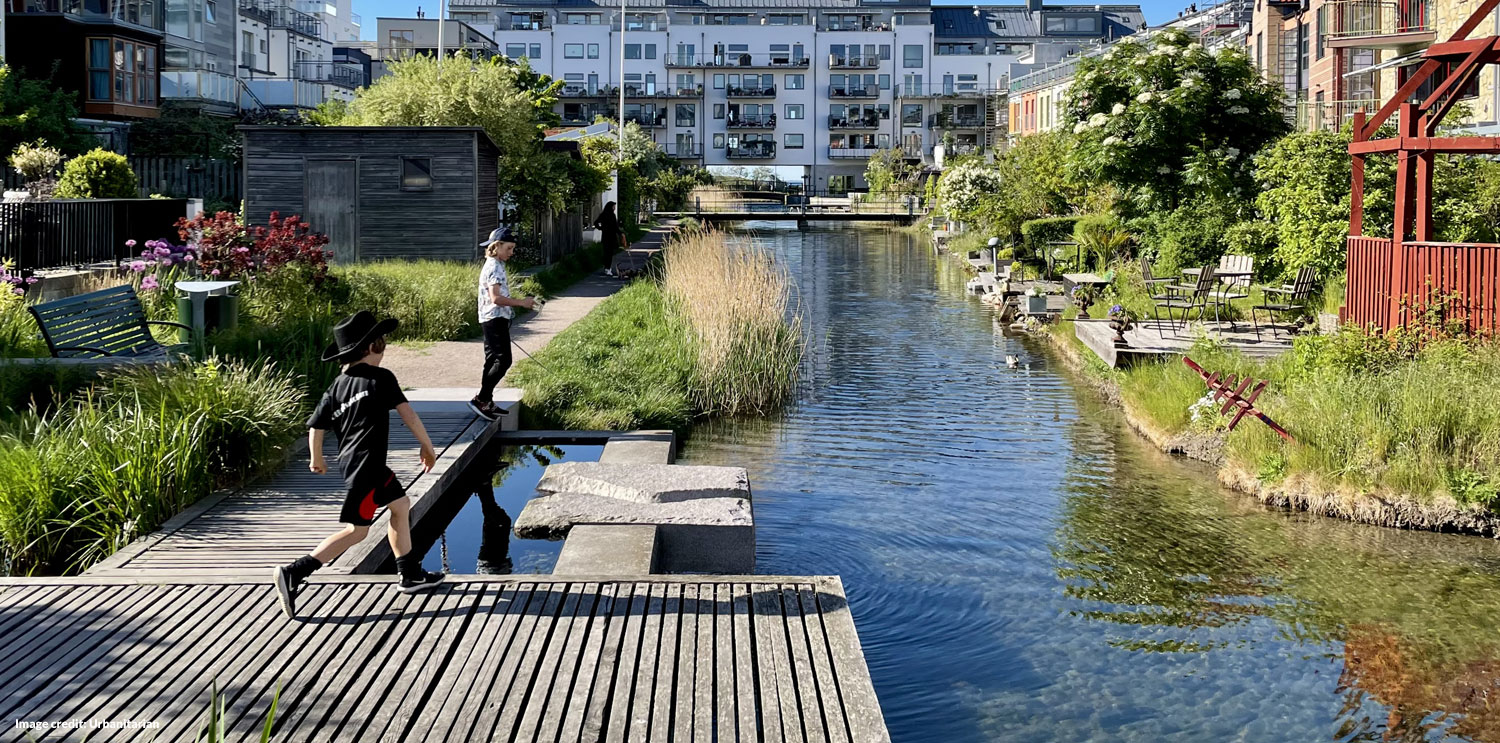

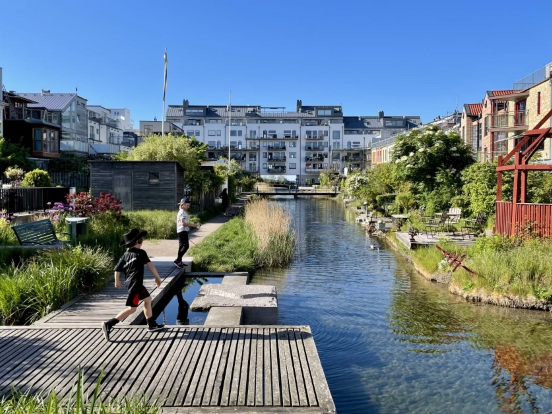

Standpromenade is a waterfront promenade running along the ocean’s edge. It features a boardwalk. - Kanalparken is a canal park. It is a man-made landscaped canal.
The gardens and public spaces help improve biodiversity. Other green features include courtyards, nesting shelf facades, and the green roofs.

Mobility

Parking is situated at the perimeter of the district. More emphasis is given to the use of public transport which is located at every 300m of residences.
