Details
Views:
93
Tags
Data Info
Author
VANDKUNSTEN
City
Aarhus
Country
Denmark
Year
2018
Program
Sustainable Non-profit Housing
Technical Info
Site area
4100 sqm
Gfa
0
sqm
Density
0 far
Population density
0
inh/ha
Home Units:
40
Jobs
0
Streetsroad:
0
%
Buildup:
0
%
NonBuild-up:
0 %
Residential
0 %
Business
0
%
Commercial
0
%
Civic
0
%
Description

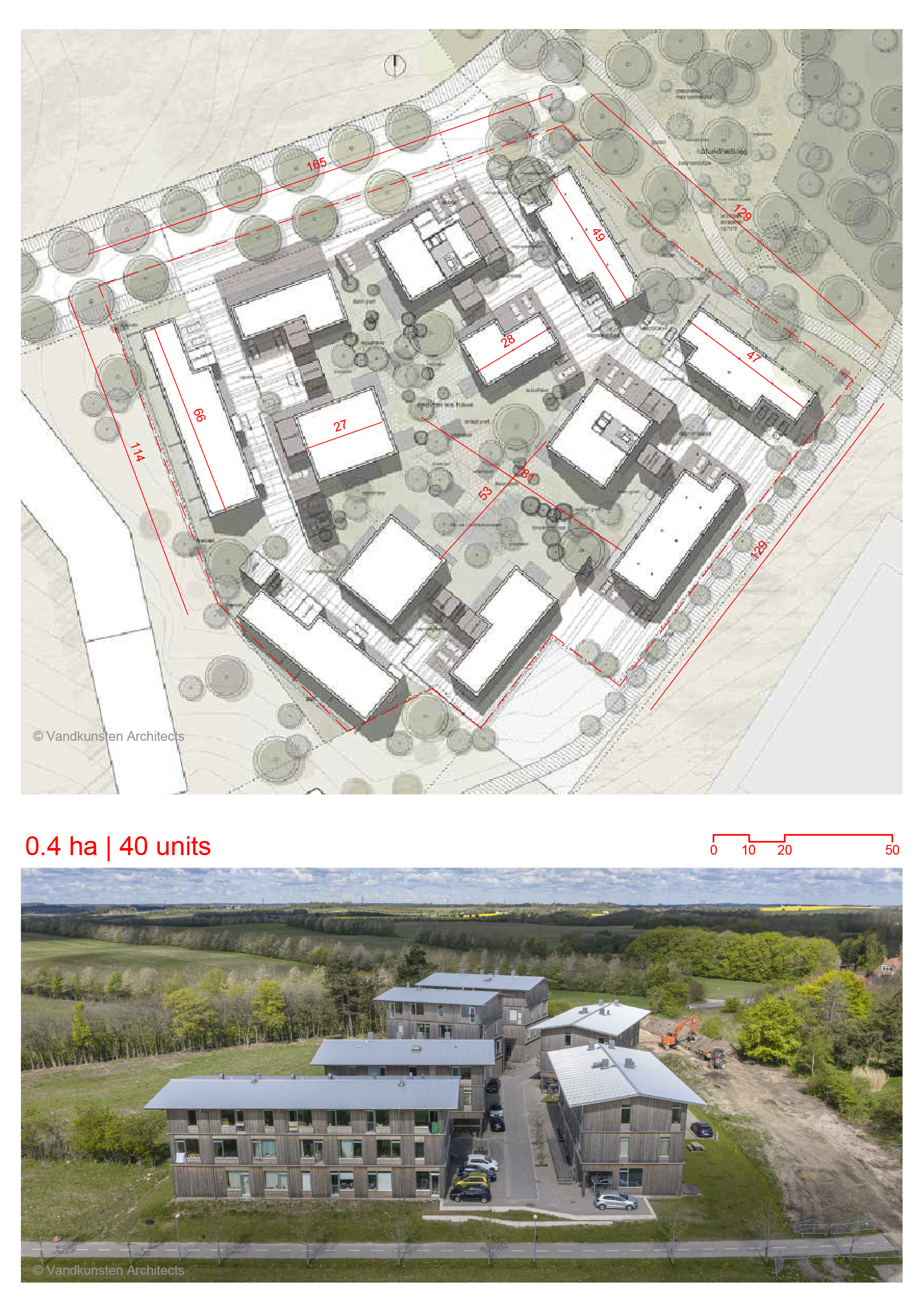

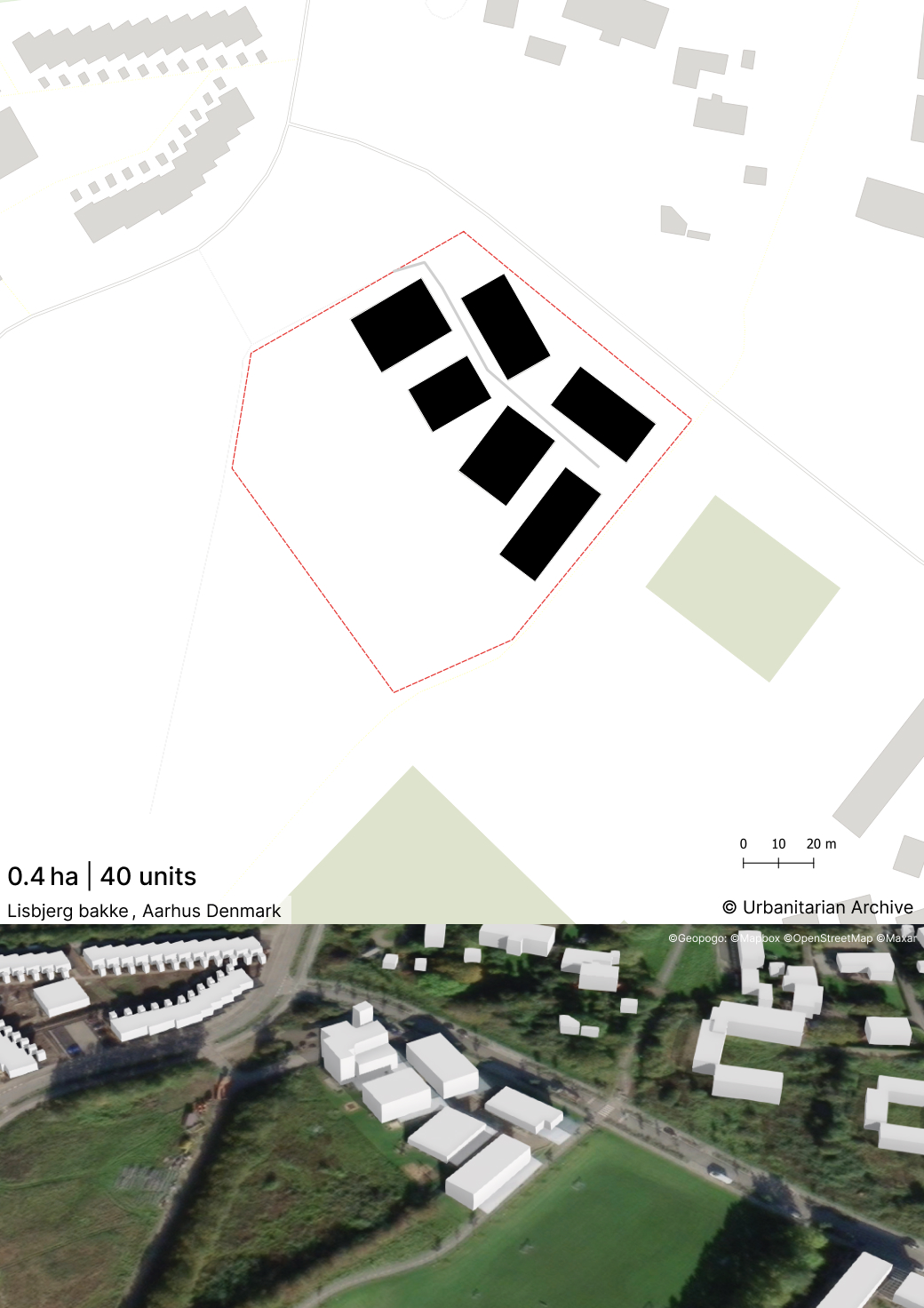

- The development is located 10 km west of Aarhus, designed as a small village with two housing groups, each consisting of three buildings.
- The layout is organized around small squares and a continuous city street, forming a shared garden space to foster community living.
- A hybrid construction technique is used, combining wood, concrete, and steel.
- The primary system is the Wood Stock column-beam system in glulam, developed by Vandkunsten and MOE.
- Concrete and steel are used in areas requiring extra engineering support, such as stairwell and elevator cores.
- The column-beam system allows for high planning flexibility, enabling future dismantling and reuse of building materials.
- The facade is made from untreated, unprofiled red spruce, which will be replaced over time rather than painted.
- The architectural design includes oversized eaves and gutters to protect the wooden facade from the elements.
- The roof shape and building design result in extra high ceilings on the upper floors.
- The building's total greenhouse gas emissions are halved compared to a similar concrete building, largely due to the CO2 storage capacity of the wood materials.
- Life Cycle Assessment (LCA) analysis confirms the reduction in emissions, assuming sustainable forestry practices are used for sourcing wood.
- The wood-based construction system offers variation in room heights for the upper apartments, adding architectural interest.
- Wooden walls contribute to moisture regulation, softer acoustics, and neutral temperatures, enhancing overall comfort.
- The 40 units consist of a mix of terraced houses and detached houses, all sharing the same construction system but offering diverse layouts.
- Residents are able to customize their homes, adding or removing walls as needed to suit their preferences.
