Details
Views:
70
Tags
Data Info
Author
PRANLAS-DESCOURS, ATELIER BRUEL DELMAR
City
Nantes
Country
France
Year
2023
Program
Residential development
Technical Info
Site area
300000 sqm
Gfa
0
sqm
Density
0 far
Population density
5000
inh/ha
Home Units:
1400
Jobs
0
Streetsroad:
0
%
Buildup:
0
%
NonBuild-up:
0 %
Residential
0 %
Business
0
%
Commercial
0
%
Civic
0
%
Description

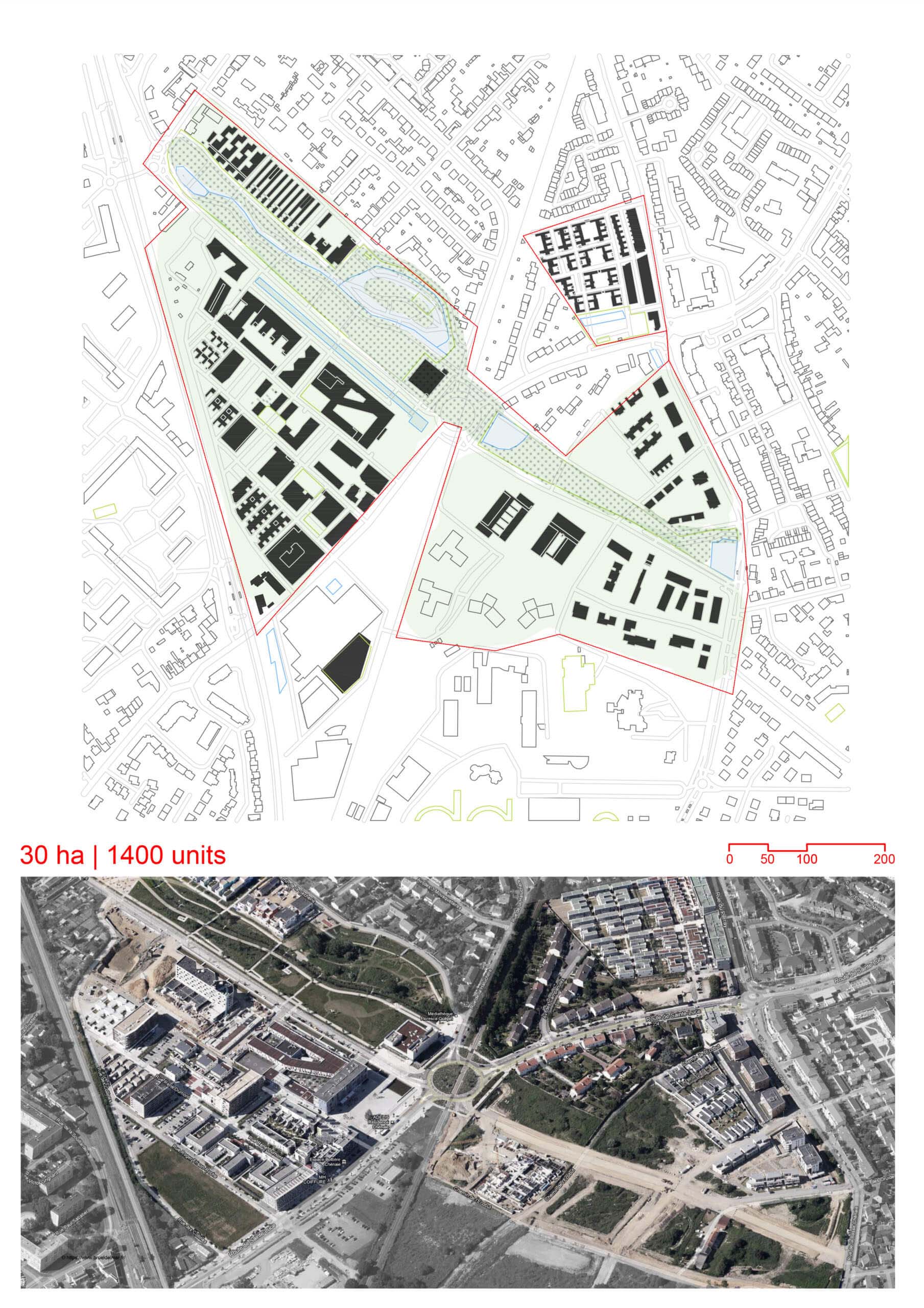

- Bottière-Chênaie offers 30 hectares to create an entire neighborhood organized around the square Cousteau’s central position, on the side of the road of Ste Luce, that enters East Nantes’ city center.
- Support the construction of 3 000 housings with the creation of public spaces inscribed in old farm plots.
- Propose spaces to share where vegetation enjoys swales and basins, according to the challenges of urban biodiversity and refreshment.

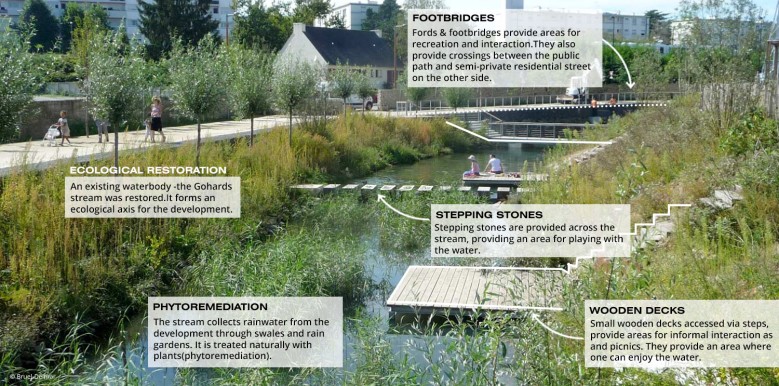

- The North park sees the reopening of the Gohards stream, that becomes the spirit of this new neighborhood.
- The South park displays meadows, old walls and the groves from the old agricultural weft, counterpoint of the higher elevation of the surrounding buildings.
- Activities and services: 7,000 m², Shops: 5,500 m², Facilities: 5,000 m²
- Urban designer: Jean-Pierre PRANLAS-DESCOURS
- Landscaper: Atelier Bruel Delmar
- The streets complete this singular work and mixt collecting ditch for rainwater and concrete path shared between pedestrians, cycles and cars.
- Under the windows of the new houses the public spaces are occupied at more than 50% by vegetation
- The collection of rainwater expresses the geography of this site. Ditches, canals and channels give meaning and direction to the public spaces
