Nordrefælled Kvarteret
By ONV,JAJA,ZESO ARCHITECTS
In Copenhagen, Denmark

No collection found

Are you sure?

This will unsave the project your collection.

Compare this project with others

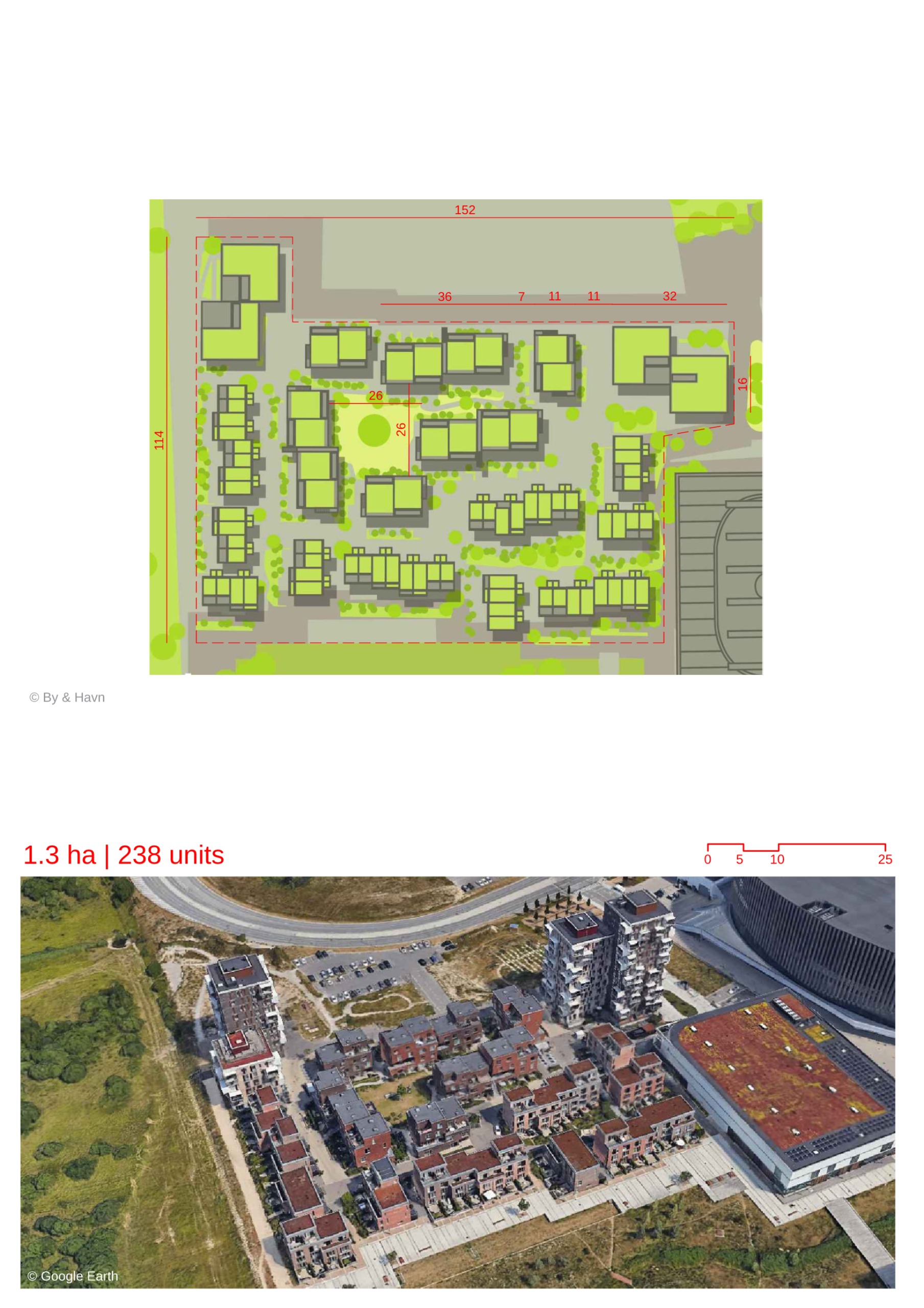

Nordrefælled Kvarteret (main)
Details   Views:  353
Tags
Data Info
Author ONV,JAJA,ZESO ARCHITECTS
City Copenhagen
Country Denmark
Year 2013
Program Residential development
Technical Info
Site area 13000 sqm
Gfa 25064 sqm
Density 2 far
Population density 0 inh/ha
Home Units: 238
Jobs 0
Streetsroad: 0 %
Buildup: 0 %
NonBuild-up: 0 %
Residential 0 %
Business 0 %
Commercial 0 %
Civic 0 %
Description

    -One portion of the district has Almen Bolig+ houses.There are 60 such homes with 3-4 floors. -Each home has either a private front and back garden or a roof terrace.The housing units are designed as terraced houses arranged in smaller clusters, centered around a communal green area. -The homes are constructed using prefab techniques, incorporating room-sized wooden modules. -All the homes are built to meet the energy efficiency standards of 2020. -Another portion of the district consists of 56 terraced houses - It features community houses and four towers ranging in height from 15 to 43 meters. - The building's location and orientation allow for future variation and minimizing shadow casting on neighboring structures. - The design combines elements of traditional terraced houses and multi-storey buildings to create a dynamic urban environment. - The layout involves 17 x 17-meter cubes displaced relative to each other, creating varied heights and distances, resulting in differentiated urban spaces with optimal daylight conditions and views. - The terraced houses prioritize solar orientation and provide a strong connection to the outdoors, with entrances directly linked to the kitchen and visual access to the garden. -The tower design emphasizes horizontal elements on the façade to establish a visual connection between the towers, regardless of the number of floors they occupy. -The building incorporates sustainable measures, including energy-efficient building elements such as low-energy windows and highly insulated facades and roofs.

Location map
